HTTP API

Everything the MDT stores is reachable over a JSON API: for dashboards, spreadsheets, Discord webhooks, or your own game server scripts. This page covers authentication and the most common endpoints.

Full reference

The complete, always-current reference with every route, schema and status code is at mdt.npdev.eu/docs. You can try each endpoint there with your own key. The key stays in the browser tab. The same data is available as OpenAPI 3.1, a Postman collection and llms.txt.

Base URL: https://mdt.npdev.eu/api/v1

Quick start

curl https://mdt.npdev.eu/api/v1/health
# { "ok": true }

curl -H "Authorization: Bearer $KEY" https://mdt.npdev.eu/api/v1/access
# which instance this key belongs to

API keys

Create a key in Discord or in the web board:

• Discord: /apikey create opens a modal for the key's name, then shows the key once. Copy it right away. Afterwards it can only be deleted.
• Web: Einstellungen → Stempeluhr → API-Schlüssel (settings → time clock → API keys).

Command	What it does
/apikey create	Create a key. Shown once
/apikey list	Name, last 4 characters, created and last-used date of each key
/apikey delete	Delete a key (autocompletes by name)

Keys are stored only as SHA-256 hashes. Each key belongs to exactly one instance.

Authentication

Send the key as a bearer token:

Authorization: Bearer stmp_your-key

A missing or invalid key returns 401 with { "error": "..." }. The web board uses a Discord session plus an x-guild-id header instead, so a browser never stores a key.

These work without a key: GET /health, GET /docs, the public branding endpoints GET /branding/:guildId and GET /branding/:guildId/icon.png, and /invite.

Scoped keys

Keys created with /apikey create or in the settings have no scopes and full access to their own instance.

A key can instead carry a fixed list of scopes, so a game server gets only what it needs. Scoped keys start with stmp_sc and are created through the API (POST /api/v1/admin/apikeys with { "name", "scopes": [...] }). A key never gains scopes after it was created. The scopes the np_mdt resource uses:

Scope	Used for
calls:call.report	Report and resolve calls to dispatch
calls:read	Read calls (waypoints for assigned units)
employees:read	Look up who a player is in the MDT
ranks:personal.ranks_set	Set InGame ranks
timeclock:shift.ingame_clock	Clock in / out from the game
units:unit.ingame_status	Set the own unit's status from the game
facility:queue.ingame_ticket	Queue tickets at an in-game kiosk
sessions:ingame.tablet_login	One-time login links for the in-game tablet
facility:hospital.ingame_read · facility:hospital.ingame_layout	Read / place the in-game hospital
capabilities:read	Let the resource check its own setup at start

The medic sync routes (/medic/*) accept unscoped keys only.

Statistics

# This week's leaderboard, with charts embedded as base64 PNGs
curl -H "Authorization: Bearer $KEY" \
  "https://mdt.npdev.eu/api/v1/stats/leaderboard?period=weekly&charts=true"

# The bar chart as a PNG file
curl -H "Authorization: Bearer $KEY" \
  "https://mdt.npdev.eu/api/v1/stats/leaderboard/chart/bars.png?period=weekly" -o bars.png

# One user, all time
curl -H "Authorization: Bearer $KEY" \
  "https://mdt.npdev.eu/api/v1/stats/user/123456789012345678?period=alltime"

Endpoint	Returns
GET /stats/leaderboard	Totals, rows per person, trend. limit 1–500, default 10
GET /stats/user/:userId	One person's statistics
GET /stats/leaderboard/chart/:type.png	bars, share or trend
GET /stats/user/:userId/chart/:type.png	shifts or trend

period is daily, weekly (default), monthly, alltime or custom (with from / to). date=YYYY-MM-DD picks which day, week or month. All durations are milliseconds (*Ms), timestamps are ISO 8601 in UTC.

{
  "period": "weekly",
  "totals": { "totalMs": 518400000, "totalShifts": 42, "activeCount": 9 },
  "rows": [
    { "userId": "123456789012345678", "badgeNumber": "01", "nickname": "[MD-01] Mustermann",
      "totalMs": 144000000, "shiftCount": 12 }
  ]
}

Time clock

These write data and update the Discord panel immediately. People are addressed by badge (99 or "01"; 01 and 1 are the same badge). Responses always use a two-digit string ("01").

Endpoint	What it does
POST /admin/clock-in	Clock in { "badge": 99 }. 404 if no one has the badge, 409 if already clocked in
POST /admin/clock-out	Clock out { "badge": 99 }. Also clears dispatcher slots and removes the person from all units
GET /admin/clock-status/:badge	{ "badgeNumber", "clockedIn", "status", "since" }
GET /admin/on-duty	Everyone currently on duty

curl -X POST -H "Authorization: Bearer $KEY" -H "Content-Type: application/json" \
  -d '{ "badge": 99 }' https://mdt.npdev.eu/api/v1/admin/clock-in

{ "badgeNumber": "99", "userId": "…", "nickname": "[MD-99] Dr. Pearce",
  "clockInAt": "2026-07-25T10:00:00.000Z", "status": "OPEN" }

Calls from the game

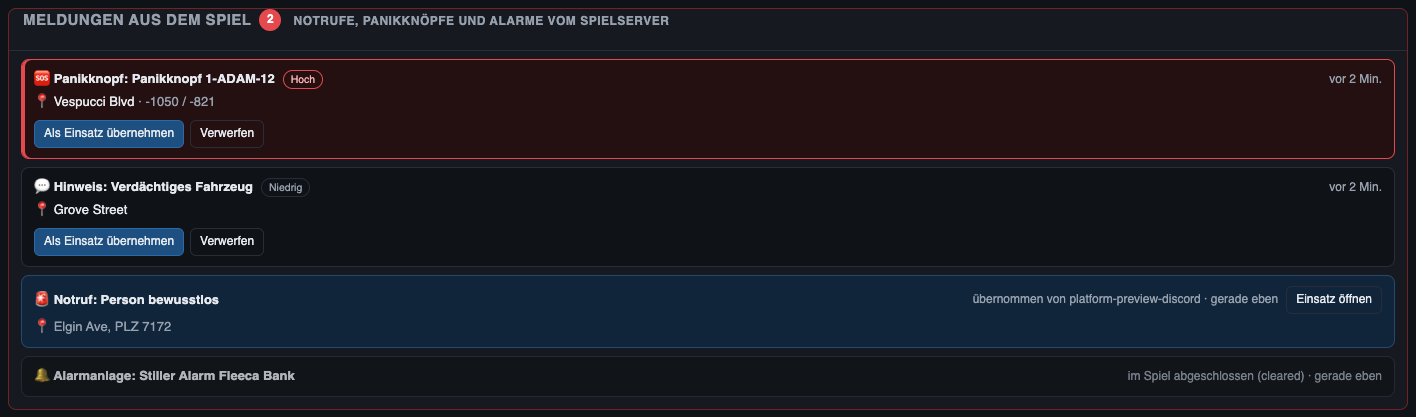

Game servers report emergency calls, panic buttons, alarms and tips. They show up on the dispatch board under Meldungen aus dem Spiel (calls from the game). An incident sheet is only created when a dispatcher takes the call. The np_mdt dispatch module does this for you. Any other script with a key can call it directly.

POST /api/v1/integrations/ingame/calls
Authorization: Bearer stmp_…
Content-Type: application/json

{
  "externalId": "notruf:char1:1696339200",
  "source": "np_mdt",
  "kind": "notruf",
  "priority": 1,
  "title": "Person bewusstlos",
  "message": "Anrufer meldet eine Person am Boden",
  "location": { "x": 215.3, "y": -810.1, "street": "Alta St", "postal": "8025" },
  "caller": { "name": "Max Mustermann", "phone": "555-0123" }
}

Field	Rules
externalId	Required. A-Z a-z 0-9 . _ : -, at most 80. The same id updates the open call and counts reportCount up
kind	notruf (emergency call, default), panik (panic), alarm, hinweis (tip)
priority	1 high, 2 normal (default, 1 for panik), 3 low
title / message	Required, ≤ 120 / optional, ≤ 500
location	Text, or an object with GTA coordinates x / y, street, postal, text
caller	Optional name (≤ 60) and phone (≤ 30)

Resolve a call that was settled in the game with POST /integrations/ingame/calls/:externalId/resolve and { "resolution": "reached" }. At most 200 open calls per instance (429 above that).

Status codes

Code	Meaning
400	Invalid parameter or body
401	Missing or invalid API key
403	Not allowed (e.g. a scope is missing)
404	Unknown route, no data, or the module is switched off
409	Conflict (already clocked in, stale version)
413	Payload too large
429	Too many (e.g. open calls)
